Technical specifications
| Max laser power | 500W |
| Laser wave length | 1064nm |
| Monopulse Max power | 110J |
| Laser welding depth | 0.1-2.5mm |
| Pulse width | 0.1-20ms |
| Laser welding frequency | 1-60Hz |
| Laser spot size adjusting range | 0.2-3.0mm |
| Whole power consumption | ≤16KW |
| Power need | 380V±10%/50Hz/40A |
| Standard configuration working table | 2100*1700mm |
| Sight positioning | high definition camera |
| Laser device vertical travel | ≥200mm |
| Laser device horizontal direction | 200-800mm |
| Length of optical cable | ≥5m |
| Machine size | 1700*1300*1400mm |
Usage

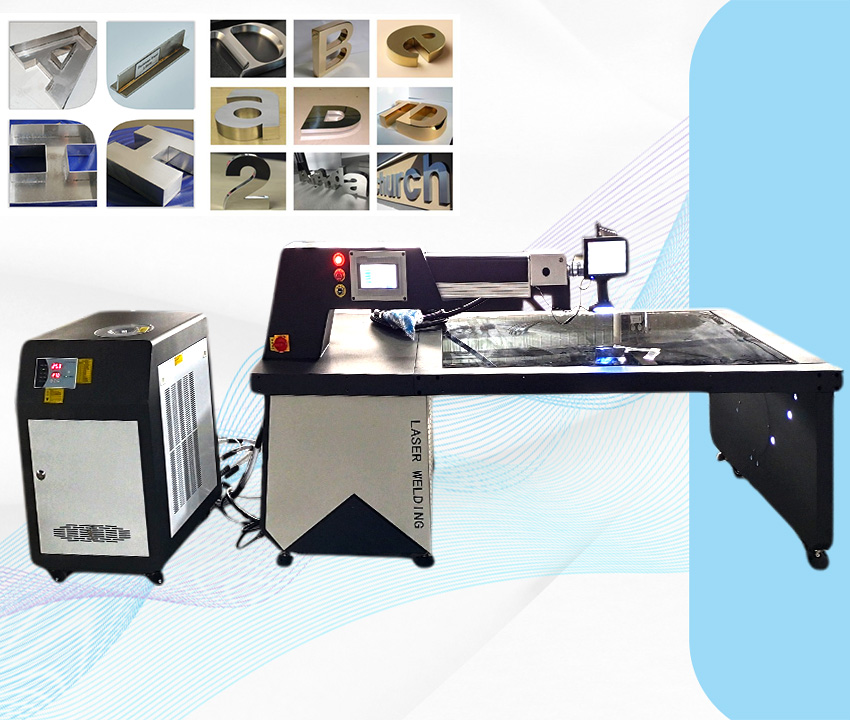

It is used for welding stainless steel and galvanized iron letters and shapes specifically designed for advertising and signage panels.
